Conseguir guías de cortina Mikuni BST33SS

Para ser la primera pieza, ha salido casi perfecta, aún así y viendo las pequeñas imperfecciones que hay, ahora sé como y por donde modificar el molde de silicona para que salga aún mejor que esta, lo bueno de esta experiencia con la silicona para moldes es que me va a servir para la restauración de muebles o pianos y copiar piezas ya inexistentes en el mercado actual

Eres un puñetero máquina coño!

Jo, jo,,,, qué tío... cómo mola!!

It looks interesting but i believe that since you spent so much time for it ,is better to make an "upgrade part" than just a "replacement part".
For example you can try to add 4 or 6 slots for small rollers to help the slide move easier! Just an idea...

Que fenómeno eres macho. David tienes un nuevo admirador.

Salu2

Enviado desde Topic'it

Aqui todos somos admirables Victor , cada cual aportando ideas o maneras de hacer, lo bueno es la curiosidad.

speedking escribió:For example you can try to add 4 or 6 slots for  small rollers to help the slide move easier! Just an idea...

Could you capture or draw a picture of the idea of ​​the small rollers?

¿Podrias plasmar o hacer un dibujo de la idea de los pequeños rodillos?

dacrest escribió:Aqui todos somos admirables Victor , cada cual aportando ideas o maneras de hacer, lo bueno es la curiosidad.

speedking escribió:For example you can try to add 4 or 6 slots for  small rollers to help the slide move easier! Just an idea...

Could you capture or draw a picture of the idea of ​​the small rollers?

¿Podrias plasmar o hacer un dibujo de la idea de los pequeños rodillos?

..something like this I had on mind with the use of the 681zz mini metal rollers!
What do you think?

It's not a bad idea, I did not know that there were those mini rollers, as you explain your idea, I think you can do it too, the rollers are 3 mm outside diameter and 1 mm thick, you would have to take a drill 1,2 or 1.5 mm for the roller to enter well, and as for the depth the hole should be given enough to support the guide or gate and run well, depending on how used the guides would have to change the depth more or less,

No es mala idea no, no sabía que existían esos mini rodillos, tal y como expones tu idea, creo que se puede hacer también, los rodillos son de 3 mm de diámetro exterior y de grueso 1 mm, habría que coger una broca de 1,2 o 1,5 mm para que el rodillo entrara bien, y en cuanto a la profundidad el agujero habría que darle lo suficiente para que apoye la guía o compuerta y corra bien, según lo usadas que estén las guías habría que cambiar la profundidad a más o menos,


As for those rollers, I suppose they should carry a mini axle so that they turn well and it would be necessary to calculate the depth and thickness of the holes so that the shaft fits well and only rotate the mini roller and not the shaft,

En cuanto a esos rodillos, supongo que deberán de llevar un mini ejes para que giren bien y habría que calcular a que profundidad y grosor de los agujeros para que el eje encaje bien y solamente gire el mini rodillo y no el eje,

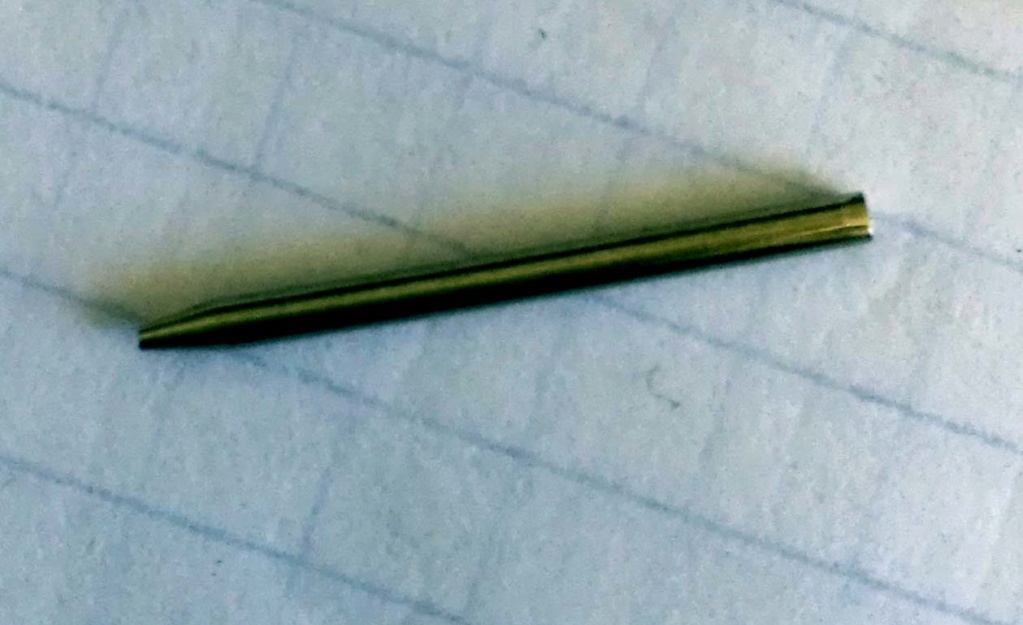

Shafts should be 1.1 mm or 1.2 mm so that it fits well and does not turn on itself in the inner diameter of the mini roller that is 1 mm thick, if there are, I use them sometimes for the restoration of the machinery of the pianos,

Ejes deberían de ser de 1,1 mm o 1,2 mm para que encaje bien y no gire sobre si mismo en el diámetro interior del mini rodillo que es de 1 mm de grosor, si que hay, yo los uso a veces para la restauración de la maquinaria de los pianos,

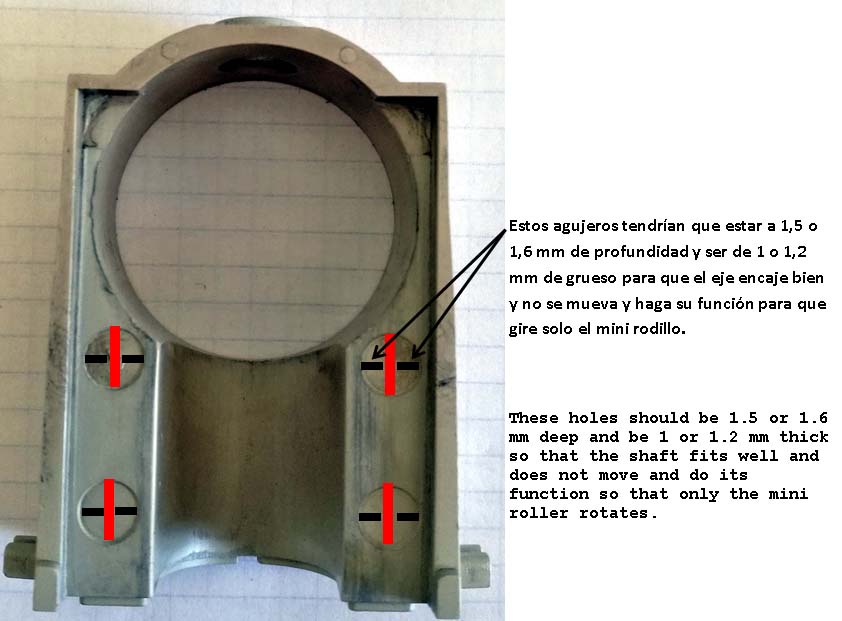

Positive and negative that I see, positive, is a job of precision but it can be done, marking in the drill or drill to what depth you have to stop boring, as there is not much depth with a dremel can be done.

Negative,   the axles are stainless steel and the mini rollers also and I do not know how they will stand gasoline or gasoline vapor, and if over time they become engarroten because of it and the hatch does not rise and fall well and the motorcycle is accelerated , although if the gate only slides on the rollers this would not be a problem, we should try it, anyway the idea is good and very well thought out

Pros y contras que le veo, Pros, es un trabajo de precisión pero se puede hacer, marcando en la o las brocas a que profundidad hay que parar de agujerear, como no es mucha profundidad igual con una dremel se puede hacer.

Contras,   los ejes son de acero inoxidable y los mini rodillos también y no sé como soportarán la gasolina o vapor de gasolina, y si con el tiempo se engarroten por culpa de ello y la compuerta no suba y baje bien y la moto se quede acelerada, aunque si la compuerta solo se desliza sobre los rodillos esto no sería un problema, habría que probarlo, de todas maneras la idea es buena y muy bien pensada

They way of instalation i had on mind is simplier and it can installed on stock slide guides too.
I have check the round spot and it measures 5.5mm so i take a blind screw with a head of 5mm , make slice in meedle and there i put the roller! This whole thing then i stick it on place!

[url=https://servimg.com/view/20062521/48[/url]

Then the set of pcs and roller is that 6 mm wide? Have you already tried to do what you say?

dacrest escribió:Then the set of pcs and roller is that 6 mm wide? Have you already tried to do what you say?

No but its on my mind for sometime (some years actually!).
The blind head is 5mm wide , you cut a slice of 1mm down to 3.5mm and there you install the roller. Of caurse you need holes for roller axis !

This is what I mean....
I thought to call it "BST Roller Mod" :-)

I had to give a fast try and i can say the results are satisfing!
1, i had to make a hole of 2.5mm
2, make threat with a 3mm screw.. the plastic is thick enough to support threats..
3, you take a 3mm headless screw and prepare it (flatten the surface and make a slot of 1mm wide 3mm deep).
4, install the roller( i dont have by now)
5, install the screw and adjust the surface of the acrew to the surface of the guide!
When i will try and be more serious on it i will see if there is any problem with the roller clearence.
If so i will use a bigger screw of 3.5mm or 4mm!

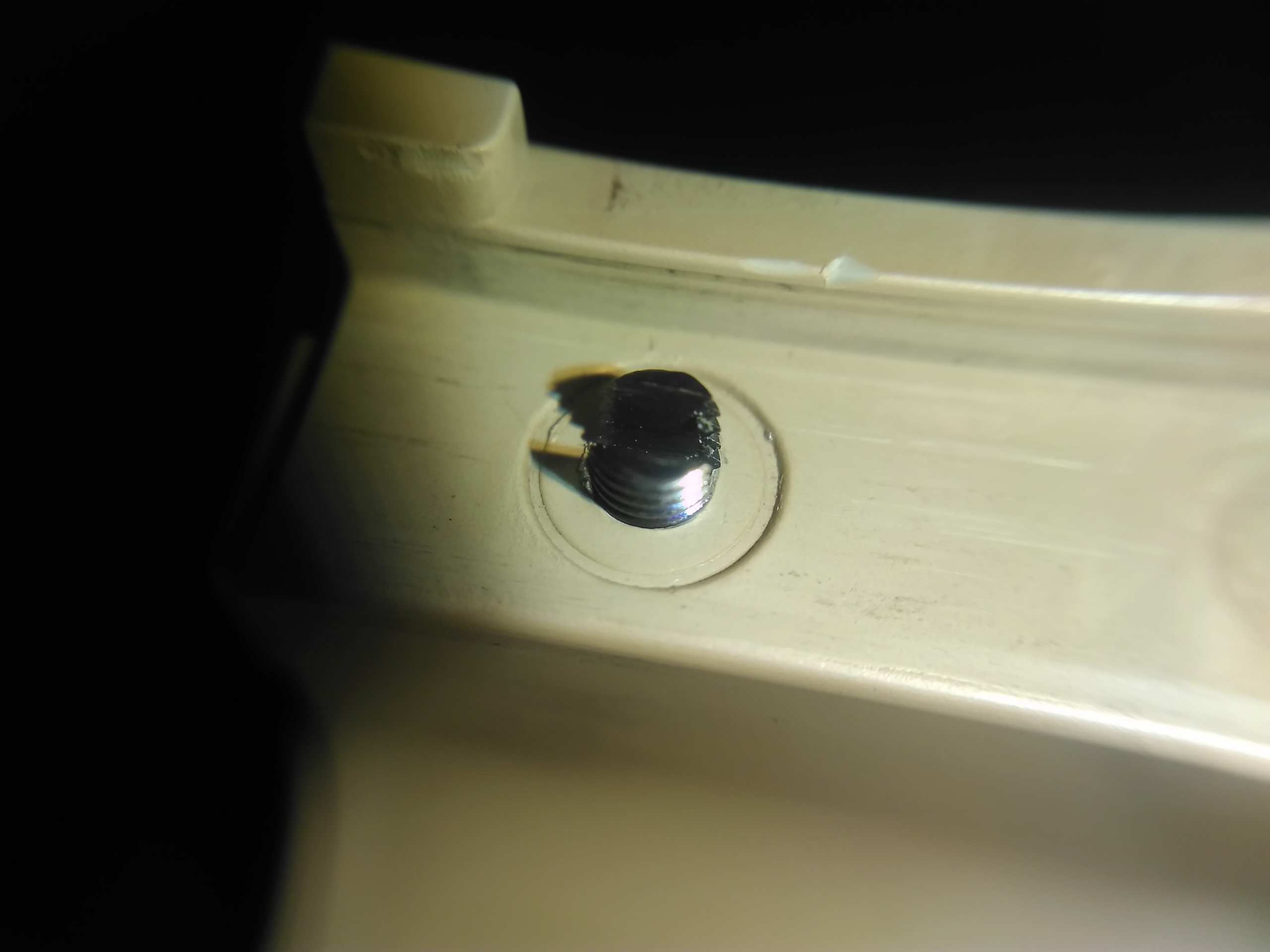

..an even more easier modification is just install the headless 4mm screw with the round head touching the slide. The move is much more smooth than before but I only want to see of much wear can have on the slide..

Y...un tornillo con una bola que gire en vez de esos?

What about a rolling ball in the head instead?

Eso lo veo mejor, porque creo que con el tornillo fijo se acabará haciendo un surco en las guias.

Metal vs plástico

Salu2 Bandid@s

Enviado desde Topic'it

Ivandit escribió:Y...un tornillo con una bola que gire en vez de esos?

What about a rolling ball in the head instead?

These are defently even better!
How are they called?

speedking escribió:

Ivandit escribió:Y...un tornillo con una bola que gire en vez de esos?

What about a rolling ball in the head instead?

These are defently even better!
How are they called?

I see that better so that there is no wear in the black guide.
Eso lo veo mejor para que no haya desgaste en la guía negra

En Google puse "rolling ball screw" y salen unos cuantos enlaces, por ejemplo https://www.amazon.com/uxcell-Rolling-Plunger-Socket-M12x16/dp/B0142Z9DKG

I just Googled "rolling ball screw", there's plenty of links like the one above

Ivandit escribió:En Google puse "rolling ball screw" y salen unos cuantos enlaces, por ejemplo https://www.amazon.com/uxcell-Rolling-Plunger-Socket-M12x16/dp/B0142Z9DKG

I just Googled "rolling ball screw", there's plenty of links like the one above

Yes i could find also on ebay. They are called "spring ball screw".
This is a really simplier way but i only wonder what about the spring? Is there any suspension and how deep is it?

Forobandit innovando!!/Innovative Bandit Forum!!

Spring Plungers and yes they have internal spring..
point is that if the force of the spring is enough to resist the force of the vacuum which is pulling the slide.. I will order some as I really want to find out!

Or a more specific solution, these are made to roll rather than the spring ones: "micro ball transfer unit" or "micro ball casters"

O una solucion mas especifica, estos estan pensados para rodar, no como los que llevan muelle: "micro ball transfer unit" o "micro ball casters"



https://www.alibaba.com/showroom/micro-ball-transfer-unit.html

https://www.google.com/search?client=firefox-b-d&biw=1368&bih=816&tbm=isch&sa=1&ei=zK7-XMiXO7WR1fAPvfqU0Ag&q=micro+ball+casters&oq=micro+ball+casters&gs_l=img.3...537583.540720..540878...0.0..0.174.1537.19j1......0....1..gws-wiz-img.......0i24j0i30j0j0i8i30.nNLBjA7GXl0
